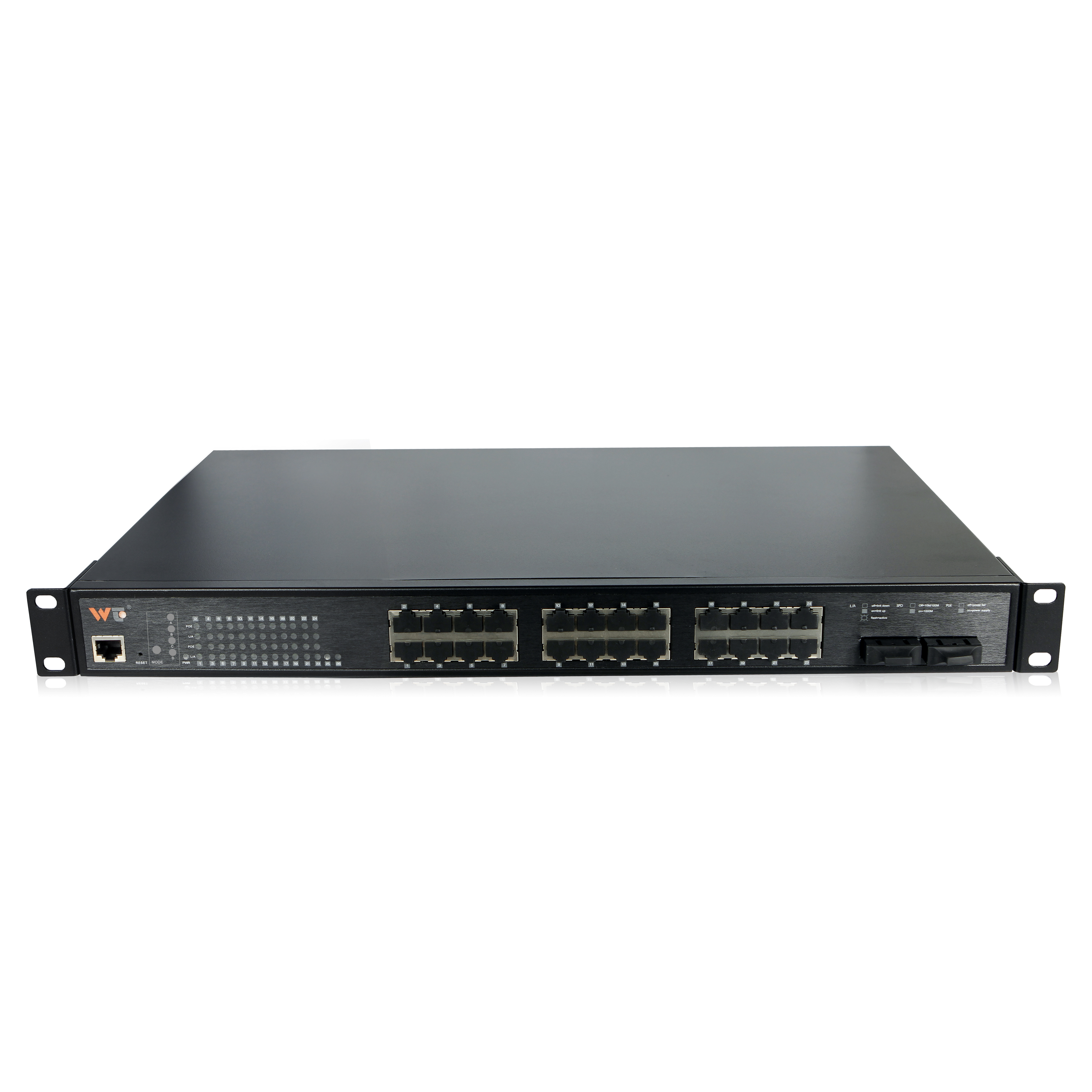

24 ports POE Ethernet Switches (Gigabyte)

model： WT-CS1026-2GF24GT-P-AF

2 �1000M fiber ports + 24�10/100/1000M Ethernet port;300W

Description Technical parameters Applications Download Related Products

Features

nProvide 24 Gigabit electric interface,2 Gigabit opticalinterface

nFanless design?IP30 protection grade, Impact resistant metal shell

nApplicable voltage range 100~240V AC

nMeet the requirements of electromagnetic compatibility EMC industrial grade 4?anti-lighting, static electricity, surge, group pulse?

nAll port anti-lighting 6KV

nApplicable to -20??60? working environment

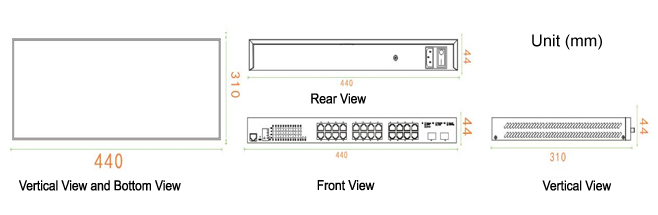

Dimension

Unit (mm)

Order information

Packaging List

• Ethernet Switch

• AC Power Cable

• Installation Accessories

• User’s Manual

• Warranty Card

• Qualification Certificate

Label： POE Switches

Products Properties

Interface	Optical interface: 1000Mbps (Interface type: SC/ST/FC and SFP slots) Ethernetinterface:10/100/1000Mbps self-adaptation, Full/Half duplex mode,support MDI/MDI-X. transmission distance common mode 0-100m LEDindicator: PWR,Link/ACT, SPD,POE
Switch Properties	Backboard bandwidth:52Gbps MAC address table:8K Message cache size:4MbitsOversized frame rate:9.6KB Packet forwarding rat:38.7Mpps
Power Supply	Input voltage: 100~240V AC Input current: max 200mA
Physical Properties	Housing: metal, IP30 protection Dimension:440mm310mm44mm Weight :3100g Installation mode: desktop installation, wall-mounted installation
Environmental Constraint	Working temperature:-20 ~ 60°C (-4 ~ 140°F) Storage temperature: -40 ~ 85°C (-40 ~ 185°F) Environment relative humidity: 5 ~ 95% (non-condensing)
Standards and certification	Electromagnetic interference?EMI?:FCC Part 15/CISPR22?EN55022??Class A Electromagnetic sensibility?EMS?: IEC61000-4-2 (ESD) 4 Class?IEC 61000-4-3 (RS) 3 Class?IEC 61000-4-4 (EFT) 4 Class? IEC 61000-4-5 (Surge) 4 Class?IEC 61000-4-6 (CS)3 Class Vibration resistance:IEC60068-2-6 Impact resistance:IEC60068-2-27 Free falling:IEC60068-2-32 Note: Please visit the Wintop official website to check the latest certification state. MTBF(mean time between failures) Time :500000h
Quality Warranty	3 years
