WT-SFP+-ER

model：

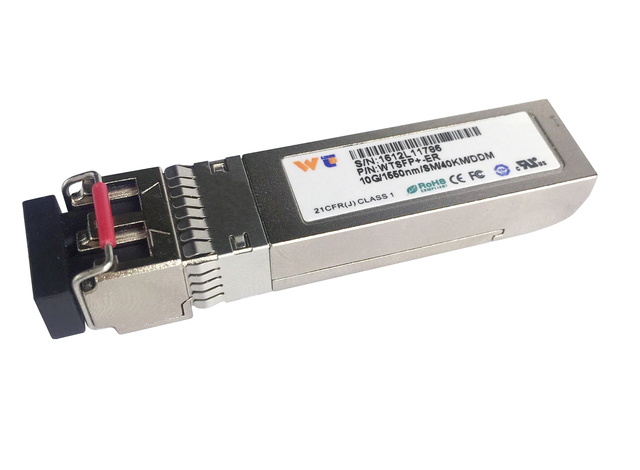

10Gb/s 1550nm SFP+ Transceiver

Description Technical parameters Applications Download Related Products

PRODUCT FEATURES

l Hot-pluggable SFP+ footprint

l Supports 9.5 to 10.3Gb/s bit rates

l Power dissipation < 1.5W

l Single 3.3V power supply

l Maximum link length of 40km

l 1550nm EML transmitter, PIN photo-detector

lDuplex LC connector

lPower dissipation < 1.5W

lBuilt-in digital diagnostic functions

lCase temperature range ?-5°C to 70°C

APPLICATIONS

l10GBASE-ER/EW 10G Ethernet

STANDARD

l Compliant with SFF-8472 SFP+ MSA

l Compliant to SFP+ SFF-8431 and SFF-8432

l Compliant to 802.3ae 10GBASE-ER

l RoHS Compliant

Outline Dimensions

Label： SFP+

Optical Characteristics

Parameter	Symbol	Min.	Typ.	Max.	Unit	Note
Transmitter
Average Launched Power	PO	-2		+4	dBm	Note (1)
Extinction Ratio	ER	6			dB
Center Wavelength	λc	1530	1550	1565	nm
Spectrum BandWidth (RMS)	σ			1.0	nm
SMSR		30			dB
Transmitter OFF Output Power	POff			-40	dBm
Optical Rise/Fall Time	tr/tf		100	260	ps	Note (2)
Transmitter andDispersion Penalty	TDP			3.0	dB
Output Eye Mask	Compliant with IEEE 0802.3ae
Receiver
Input Optical Wavelength	λ	1270		1610	nm
Receiver Sensitivity				-15	dBm	Note (3)
Input Saturation Power (Overload)	Psat	0.5			dBm
LOS Detect -Assert Power	PA	-28			dBm
LOS Detect - Deassert Power	PD			-19	dBm
LOS Detect Hysteresis	PHYS	0.5			dB

For detail, please check the datasheet in "Download".
