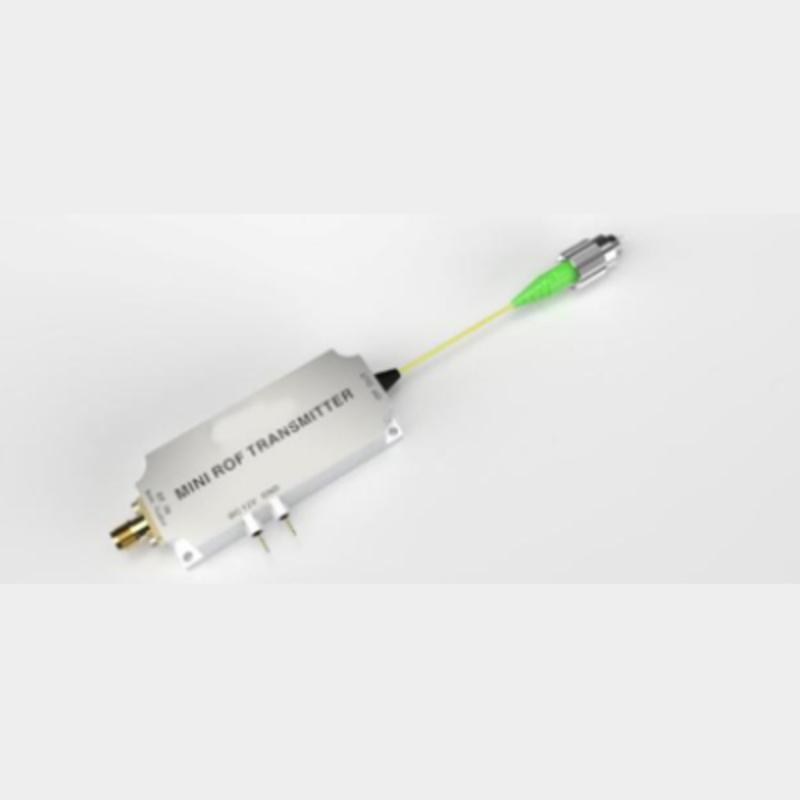

Broadband RF over Fiber Tranceiver

model：

This module is a low cost high performance Broadband Optical Transceiver with very wide Dynamic Range designed for RF over Fiber applications. Designed for optical RF applications. This module offers high Spurious Free Dynamic Range (SFDR) with operational frequencies from 500 KHz to 6 GHz. The standard optical connector is FC/APC for low back reflection applications and the RF interface is via a 50 Ohms SMA connector. The Receiver features a high performance InGaAs photodiode and the Transmitter is based upon a linear optically Isolated DFB Laser operating at either 1.3 or 1.5 ?m over 9/125 ?m Single Mode Fiber.Average Automatic Power Control (AAPC) is incorporated for optimal optical power stability over the full operating temperature range.

Now Consulting

Description Technical parameters Applications Download Related Products

FEATURES

l 500 KHz to 6 GHz Bandwidth

l tight Cast Metal housing

l ?25? to +65? TOP Range

l High SFDR

l Flat Frequency Response

l Auto Optical Power Control

l 1.3 and/or 1.5 μm Isolated DFB Lasers

APPLICATIONS

l WiMAX / 4G LTE

l 2G/3G Repeater

l MMDS

l Remote Antenna Location

l Outdoor DAS

l GPS Distribution

l Shipboard RF distribution

l Satellite Ground station

DESCRIPTION

The standard optical connector is FC/APC for low back reflection applications and the RF interface is via a 50 Ohms SMA connector. The Receiver features a high performance InGaAs photodiode and the Transmitter is based upon a linear optically Isolated DFB Laser operating at either 1.3 or 1.5 μm over 9/125 μm Single Mode Fiber.Average Automatic Power Control (AAPC) is incorporated for optimal optical power stability over the full operating temperature range.

Label： RF optical module

Parameter		Symbol	Min	Typical	Max	Units	Notes
Power Supply Voltage		V_CC	6	12	15	Volts
Power Supply Current		I_CC		50		mA
Laser Optical Output Power				3		mW
Transmitter Operating Wavelength				1310/1550		nm
Receiver Operating Wavelength				1310/1550		nm
High Frequency Cutoff		HFC		6000		MHz	1
Low Frequency Cutoff		LFC		500		KHz	2
Frequency Response	500KHz– 1.0GHz			± 0.5	± 1	dB
	10MHz– 2.5GHz			± 1.0	±1.5
	50MHz– 3.0GHz			± 1.0	±1.5
	400MHz– 4.2GHz			± 1.0	±1.5
	500KHz–6.0GHz			± 1.5	± 2
Input/Output Impedance		Z		50		Ohms
Input/Output VSWR (500KHz–6.0GHzz)				1.7:1	2:1	dB	3,4
RF Link Gain	500KHz– 1.0GHz			-8	+15
	10MHz– 2.5GHz			-8	+15
	50MHz– 3.0GHz			-8	+15
	400MHz– 4.2GHz			-8	+15
	500KHz–6.0GHz			-8	+15
Input Noise Floor @ 1 GHz		EIN		-134		dBm/Hz	4
Input Third Order Intercept @ 1 GHz		IIP3		33		dBm	4,5
Gain change over Temp				± 2		dB	6
Isolation			60	80		dB	7

Parameter	Symbol	Min	Max	Units	Notes
Storage Temperature (Case)	T_S	?40	+85	?
Operating Temperature (Case)	T_O	?25	+65	?
DC Supply Voltage	V_DP	+6	+15	Volts
Maximum RF input into Tx			+10	dBm	7
Maximum Optical Input into Rx			10	mW

1. Typical High frequency cutoff (HFC) is 6000 MHz. For higher HFC contact Factory.

2. Typical Low frequency cutoff (LFC) is 500KHz. For lower LFC contact Factory.

3. Measured and Specified with Optical loss budget of 0 dB, and 1 meter of SMF28 optical Fiber.

4.Max Gain is TX with one amplifier and RX with one amplifier

5. Equivalent to IMD 60dB@0 dBm Total Output Power (2 tone measurement).

6.?25 to +65 C. For other operating temperature ranges, or extended temp range contact the Factory.

7. Typical value across the whole band but Measured at 1GHz.

CONNECTOR CONFIGURATIONS

RF Connector = SMA Female

Optical Connector = FC/APC

Supply Connector = M2.5 Feed-thru Capacitor
