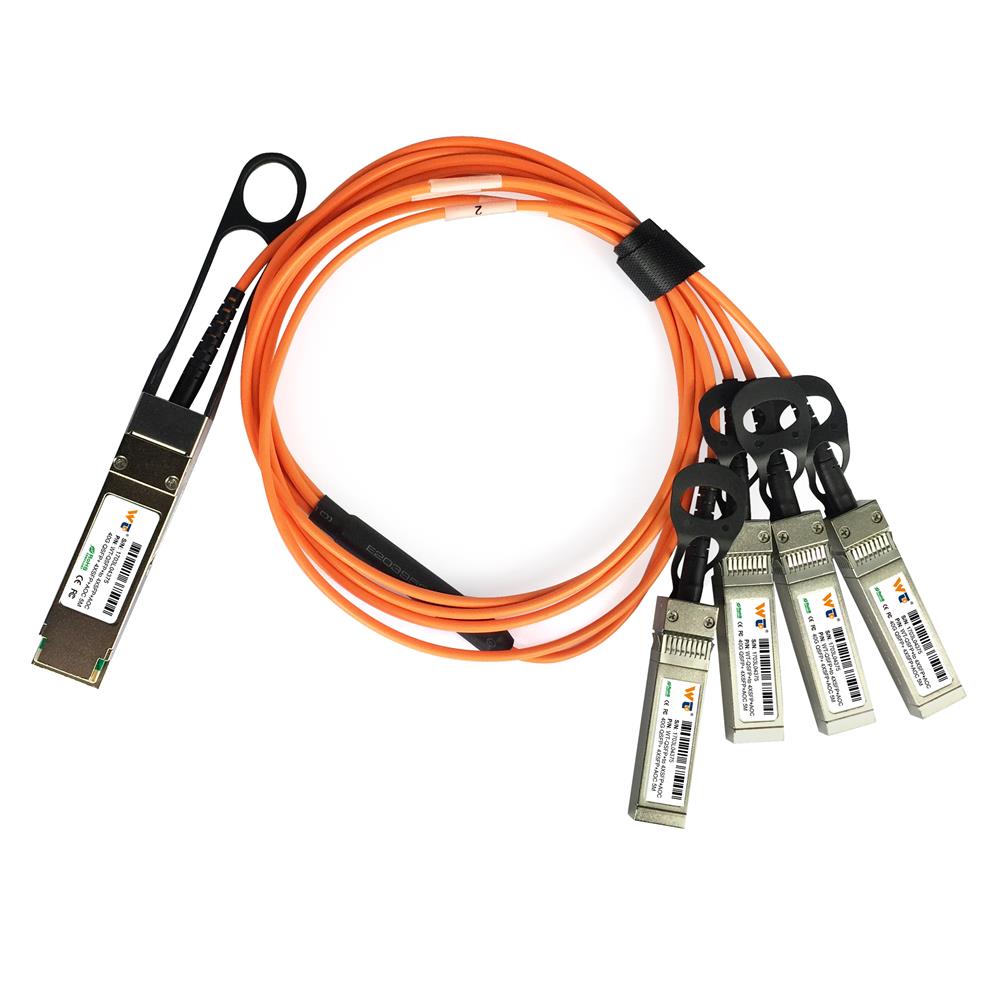

WT- QSFP+ to 4SFP+ AOC

model:


40G QSFP+ -4x10G SFP+ AOC

Now Consulting
Description Technical parameters Applications Download Related Products

 PRODUCT FEATURES

 QSFP+ AOC end:

l Compliant to the 40GBASE-SR4 and XLPPI Specification per IEEE 802.3ba-2010 and supporting 40G-IB-QDR / 20G-IB-DDR / 10G-IB-SDR applications

l Compliant to the industry standard SFF-8436 QSFP+ Specification

l Power Level 1: Max Power < 1.5 W

l Operate at 10.3125 Gbps per channel with 64b/66bencoded data for 40GbE application and at 10 Gbps with 8b/10b compatible encoded data for 40G-IB-QDR application



Each 4× SFP+ end:

l Compliant to the electrical specifications per SFF-8431 Specifications for Enhanced Small Form Factor Pluggable Module

l Mechanical specifications per SFF Committee SFF-8432 Improved Pluggable Form factor “IPF”

l Maximum power dissipation 0.35W per end.



 Active Optical Cable Assembly:

l 0 to 70 C degree case temperature operating range

l Proven High Reliability 850 nm technology: Wintop VCSEL transmitter and Wintop PIN receiver



l Hot pluggable for ease of servicing and installation



l Two Wire Serial interface



l Utilizes optical fiber for high density and thin, lightweight cable management



APPLICATIONS

l  40GbE and 10GbE break-out applications for Datacom switch and router connections

l   40G to 4×10G density applications for Datacom and Proprietary protocol applications

l   Datacenter



 SFP+ AOC end Mechanical Specifications

QSFP+ AOC end Mechanical Specifications

Label:   AOC

 Active Cable-End Electrical Characteristics



The following characteristics are defined over the Recommended Operating Conditions unless otherwise noted. Typical values are for Tc = 40 °C, Vcc = 3.3 V



Parameter

Symbol

Min

Typical

Max

Unit

QSFP+ 40G Active Cable-End Power Consumption







1.5

W

QSFP+ 40G Active Cable-End Power Supply Current







300

mA

SFP+ 10G Active Cable-End Power Consumption







0.35

W

SFP+ 10G Active Cable-End Power Supply Current







100

mA




For detail, please check the datasheet in "Download".
