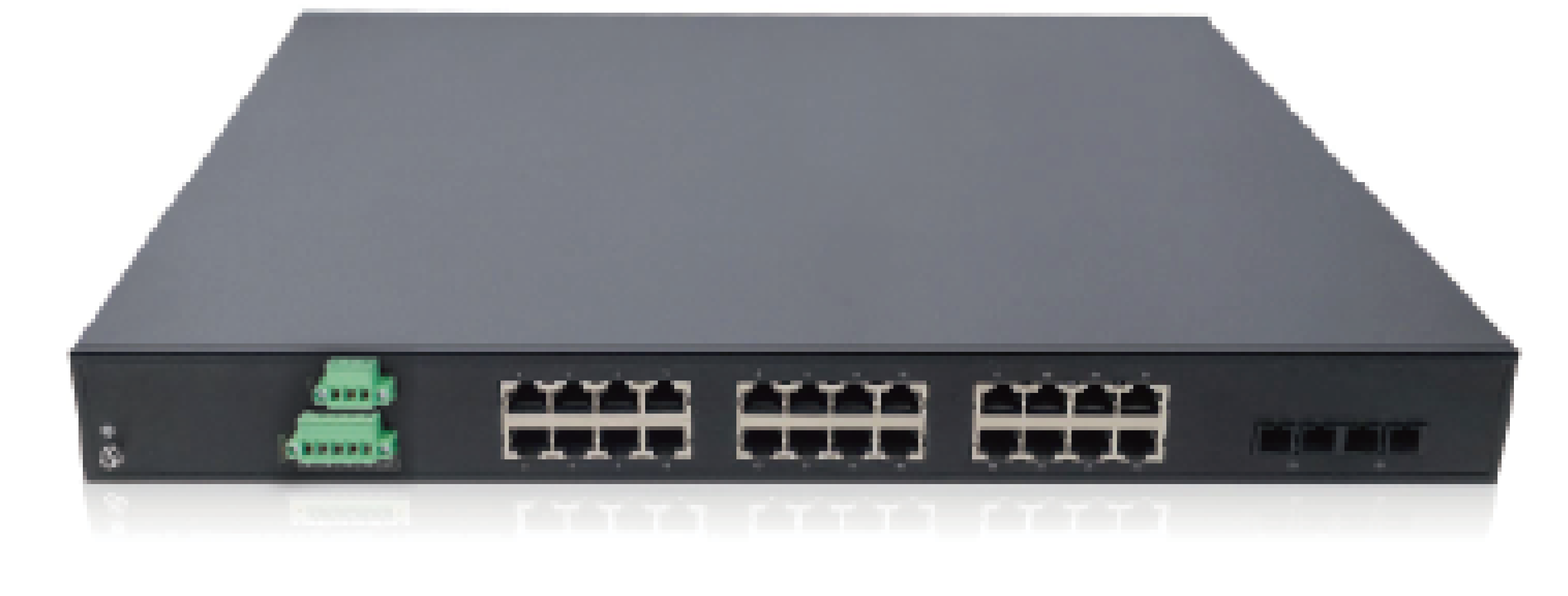

CM2026L-2F24T RackMounted Unmanaged Ethernet Switch
model: CM2026L-2F24T
26-Port industrial Ethernet switch, with 2x100Mbps optical ports and 24x100Mbps electrical ports
Applicable standards
IEEE 802.3 10Base-T
IEEE 802.3u 100Base-T&100BaseFX
Switching features
Back plane bandwidth: 5.2 Gbps
List of MAC addresses: 4K
Message buffer size: 2.75Mbit
Port
Fiber port: 100 Mbps (port type: SC, ST, FC optional)
Copper port: 10/100Mbps self-adaptive, Full/Half duplex mode, MDI/MDI-X supported, transmission distance: 0-100m.
LED indicator: PWR, Link, SPD
Fiber properties
Power source requirement
Input voltage:Supports two-way redundancy backup,
AC/DC85?265Vor DC18-60V Optional
Physical properties
Enclosure: Iron shell IP40
Size: 440 mm*320 mm*44 mm
Weight: 2400g
Mounting method: Rack-mounted
Environmental restrictions
Working temperature: -40 ~ 75°C (-40 ~ 167°F)
Storage temperature: -40 ~ 85°C (-40 ~ 185°F)
Relative ambient humidity: 5 ~ 95% (non-condensing)
Standards and certification
EMI:
FCC Part 15/CISPR22?EN55022??Class A
EMS:
IEC 61000-4-2 ESD level 4, IEC 61000-4-3 RS level 3,
IEC 61000-4-4 EFT level 4, IEC 61000-4-5 Surge level 4,
IEC 61000-4-6 CS level 3
Anti-vibration performance: IEC 60068-2-6
Shock resistance: IEC 60068-2-27
Free fall: IEC 60068-2-32
Certification: CE, FCC,RoHS
MTBF (mean time between failures)
Time: 500,000 h
Warranty
Quality assurance: 5 years
