![](/pic/images/syd001/product_e/20230630/011916252b.jpg)

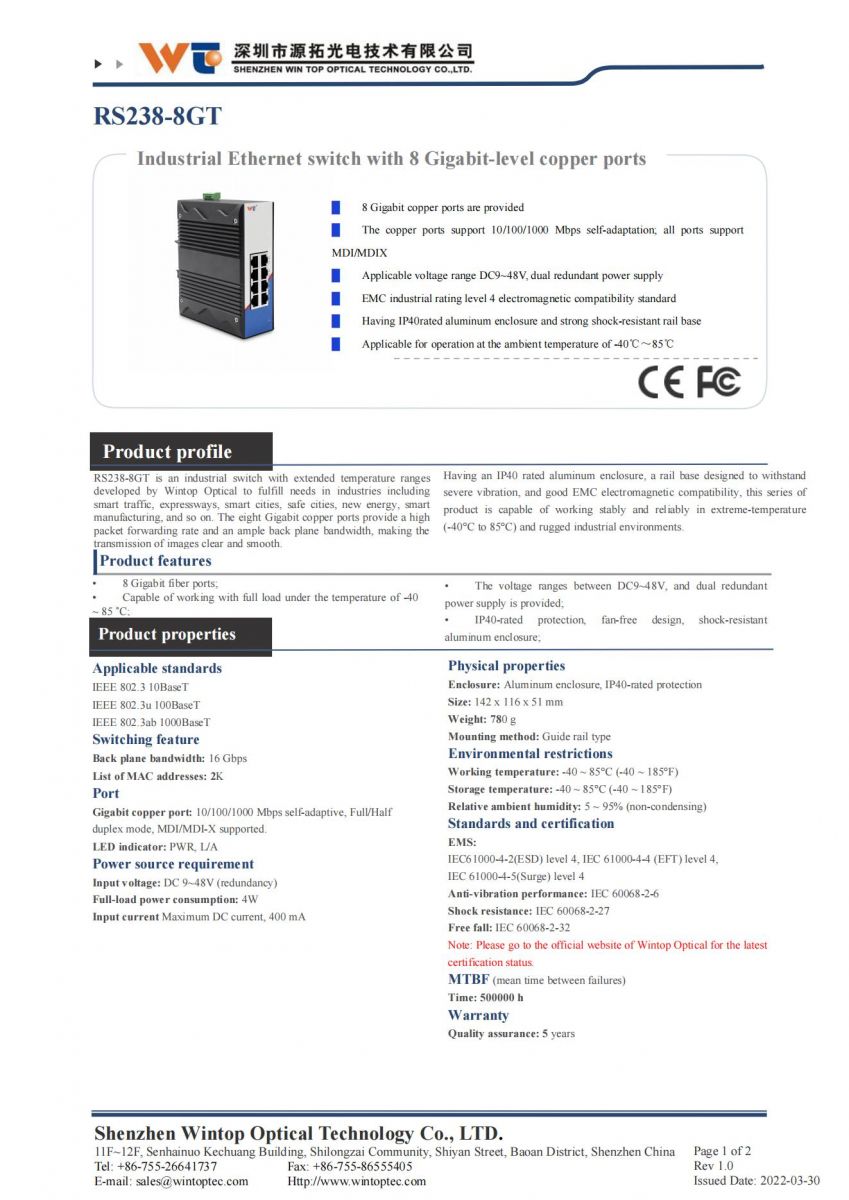

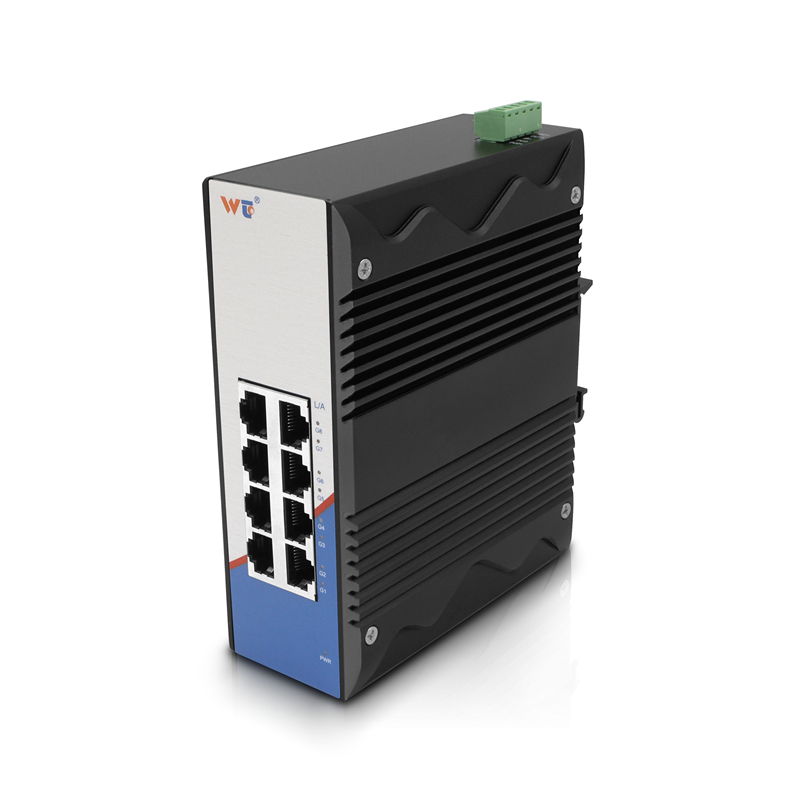

RS238-8GT Unmanaged Switch
model: RS238-8GT
8x 10/100/1000BASE-T RJ45 DC9-48V(Redundant)
![](/syd/images/disp/fc_06.jpg)
![](/syd/images/disp/fc_08.jpg)
![](/syd/images/disp/fc_10.jpg)
![](/syd/images/disp/fc_03.jpg)
Applicable standards
IEEE 802.3 10BaseT
IEEE 802.3u 100BaseT
IEEE 802.3ab 1000BaseT
Switching feature
Back plane bandwidth: 16 Gbps
List of MAC addresses: 2K
Port
Gigabit copper port: 10/100/1000 Mbps self-adaptive, Full/Half duplex mode, MDI/MDI-X supported.
LED indicator: PWR, L/A
Power source requirement
Input voltage: DC 9~48V (redundancy)
Full-load power consumption: 4W
Input current Maximum DC current, 400 mA
Physical properties
Enclosure: Aluminum enclosure, IP40-rated protection

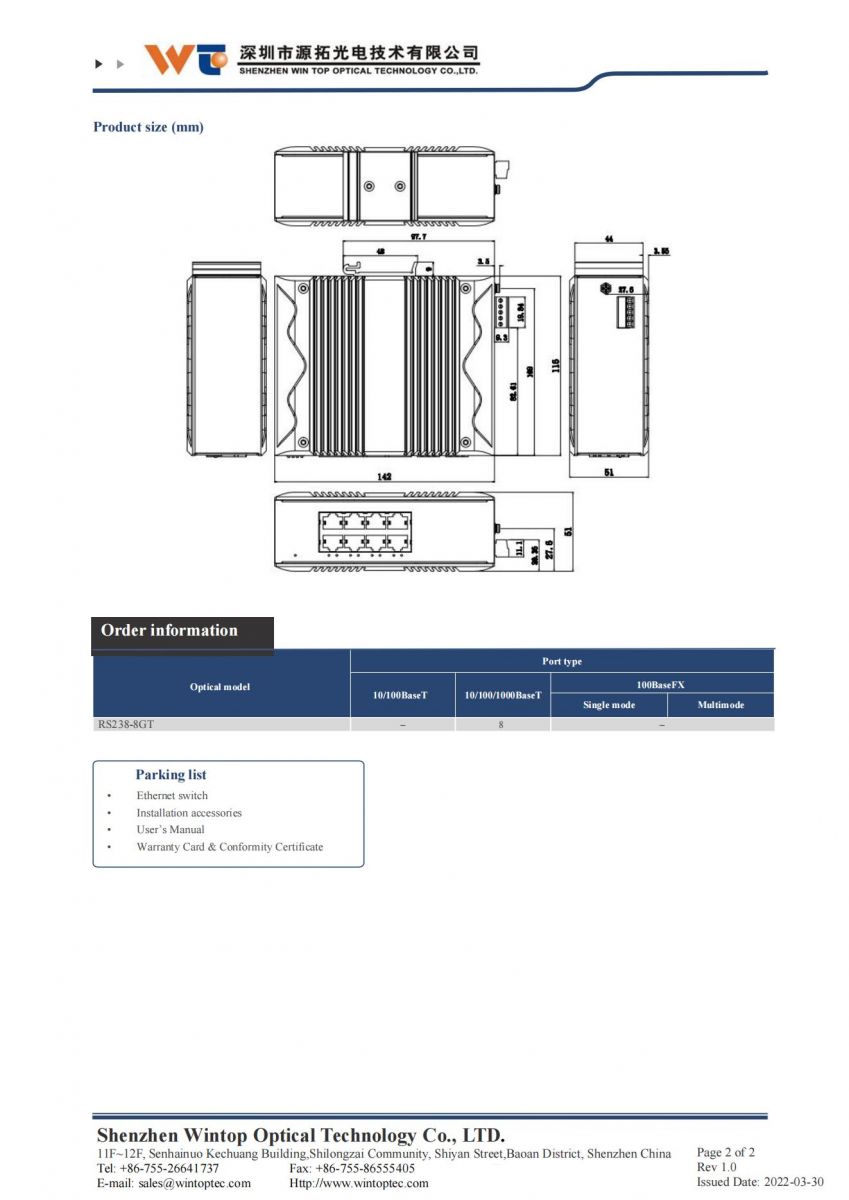

Size: 142 x 116 x 51 mm
Weight: 780 g
Mounting method: Guide rail type
Environmental restrictions
Working temperature: -40 ~ 85°C (-40 ~ 185°F)
Storage temperature: -40 ~ 85°C (-40 ~ 185°F)
Relative ambient humidity: 5 ~ 95% (non-condensing)
Standards and certification
EMS:
IEC61000-4-2(ESD) level 4, IEC 61000-4-4 (EFT) level 4,
IEC 61000-4-5(Surge) level 4
Anti-vibration performance: IEC 60068-2-6
Shock resistance: IEC 60068-2-27
Free fall: IEC 60068-2-32
Note: Please go to the official website of Wintop Optical for the latest certification status.
MTBF (mean time between failures)
Time: 500000 h
Warranty
Quality assurance: 5 years
