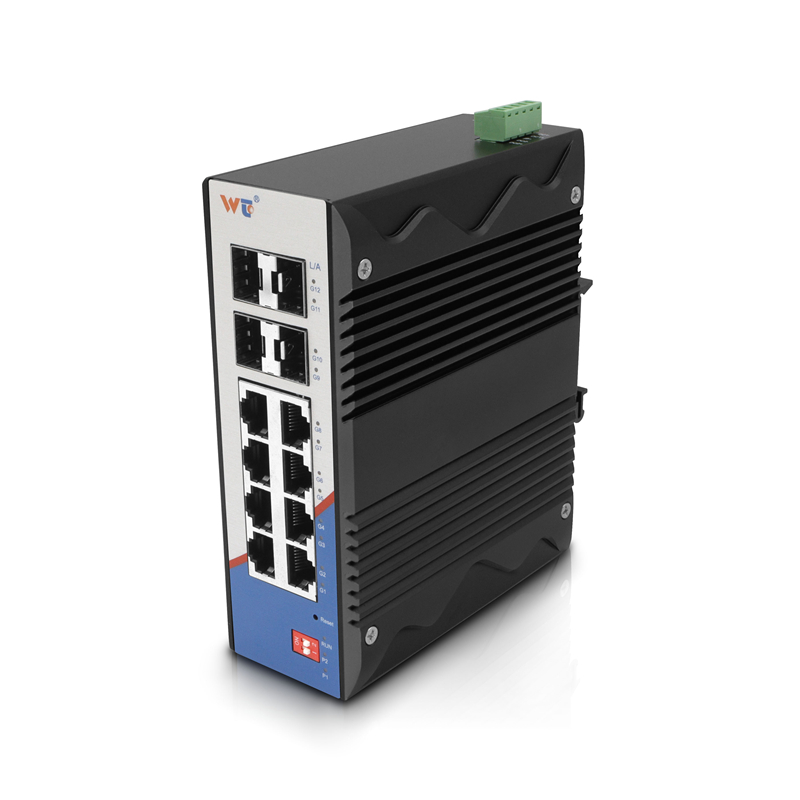

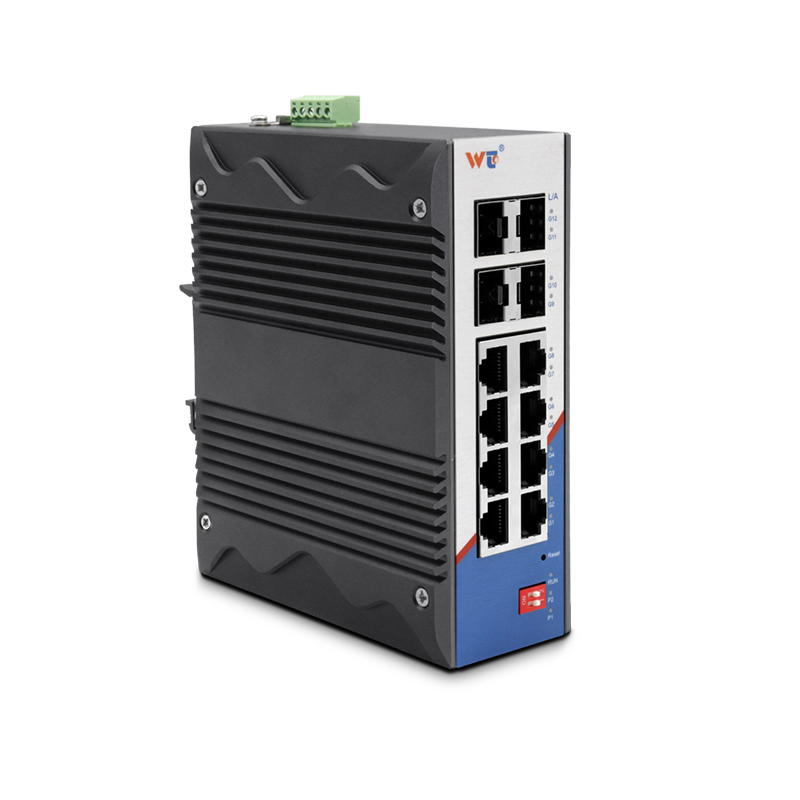

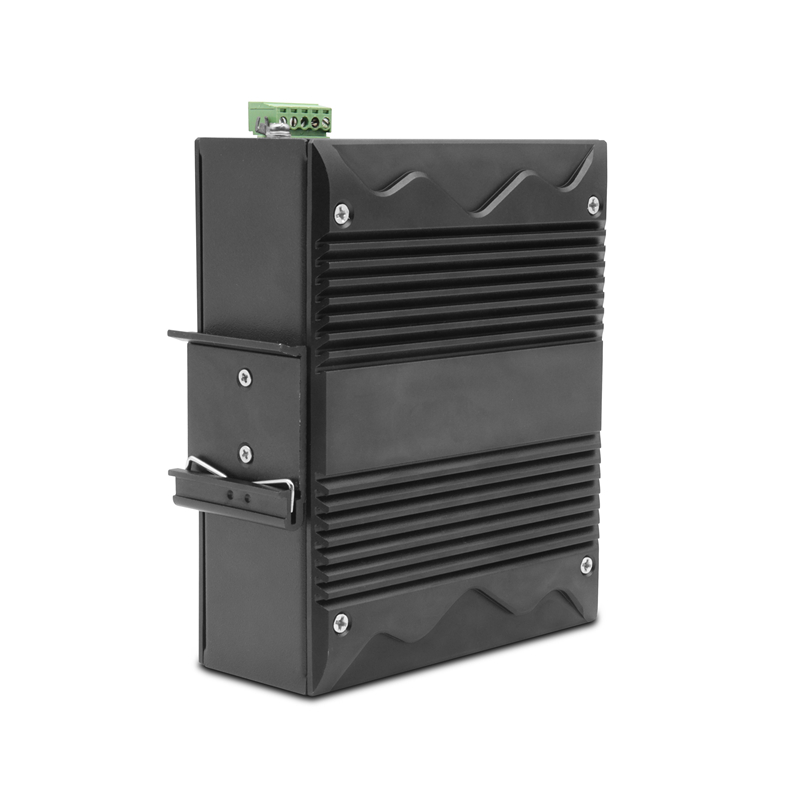

RS6312-4GF8GT Layer 2 Managed Switch

  Applicable standards

IEEE 802.3 10BaseT

IEEE 802.3u 100BaseT

IEEE 802.3z 1000BaseFX and 1000BaseT

IEEE 802.3x flow control

IEEE 802.1d-2004 STP protocol

IEEE 802.1w RSTP protocol

IEEE 802.1p Qos

IEEE 802.1q VLAN

IGMP Snooping, SNMPv1/v2c

HTTP, DHCP Client

Switching feature

Qos queue: 8 VLAN-ID: 1-4094

Back plane bandwidth: 24Gbps List of MAC addresses: 8K

Message buffer size: 4.1Mbit

Port

Fiber port: 1000 Mbps

Copper port: 10/100/1000 Mbps self-adaptive, Full/Half duplex mode, MDI/MDI-X supported.

LED indicator: P1, P2, RUN, L/A

Power source requirement

Input voltage: DC 9~48 V (redundancy)

Full-load power consumption: 11W

Input current: Maximum DC current, 1A

Physical properties

Enclosure: Aluminum enclosure, IP40-rated protection

Size: 142 × 116 × 51 mm

Weight: 850 g

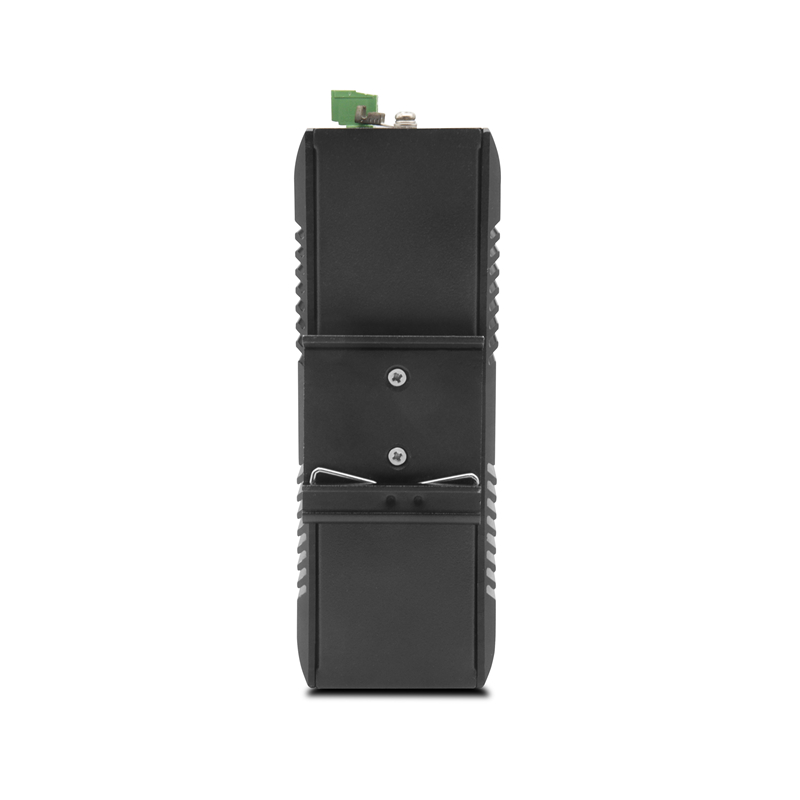

Mounting method: Guide rail type

Environmental restrictions

Working temperature: -40 ~ 85°C (-40 ~ 185°F)

Storage temperature: -40 ~ 85°C (-40 ~ 185°F)

Relative ambient humidity: 5 ~ 95% (non-condensing)

Standards and certification

EMS:

IEC61000-4-2(ESD) level 4, IEC 61000-4-4 (EFT) level 4, IEC 61000-4-5(Surge) level 4

Anti-vibration performance: IEC 60068-2-6

Shock resistance: IEC 60068-2-27

Free fall: IEC 60068-2-32

Note: Please go to the official website of Wintop Optical for the latest certification status.

MTBF (mean time between failures)

Time: 500000 h

Warranty

Quality assurance: 5 years

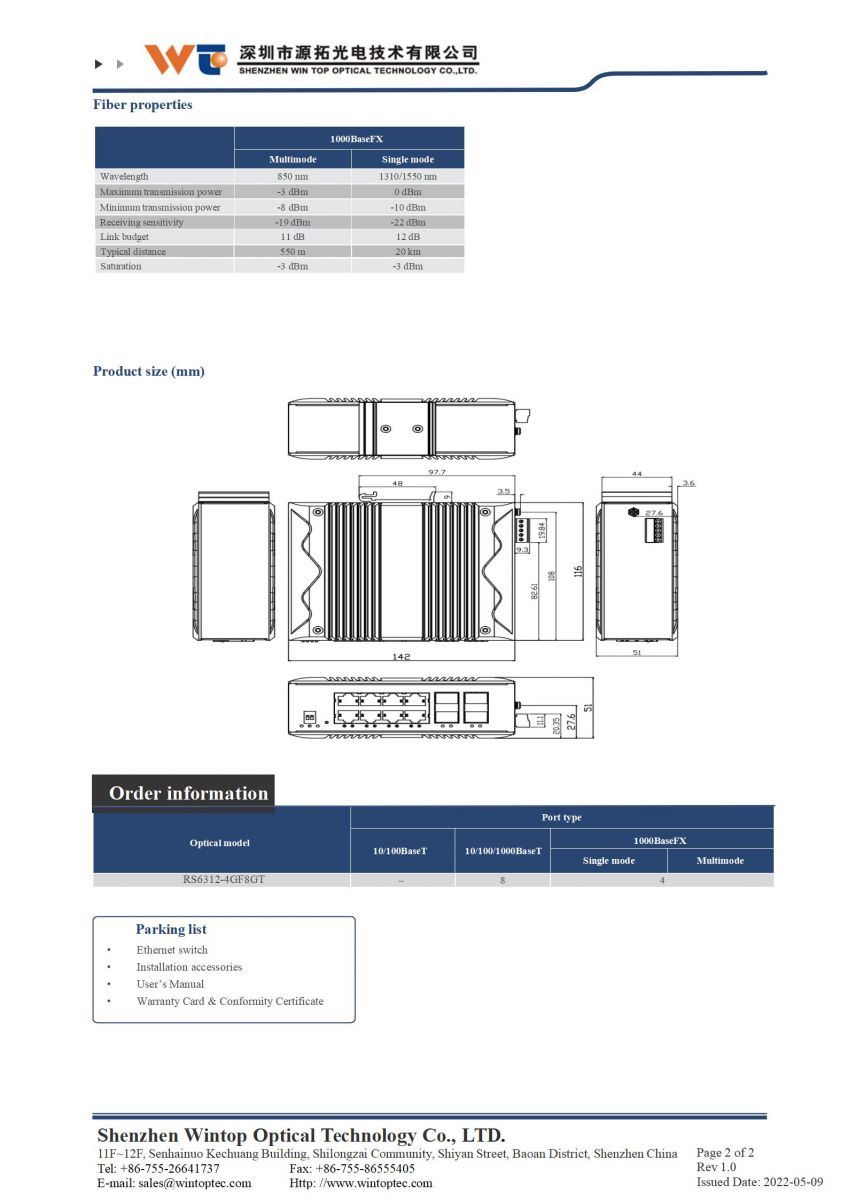

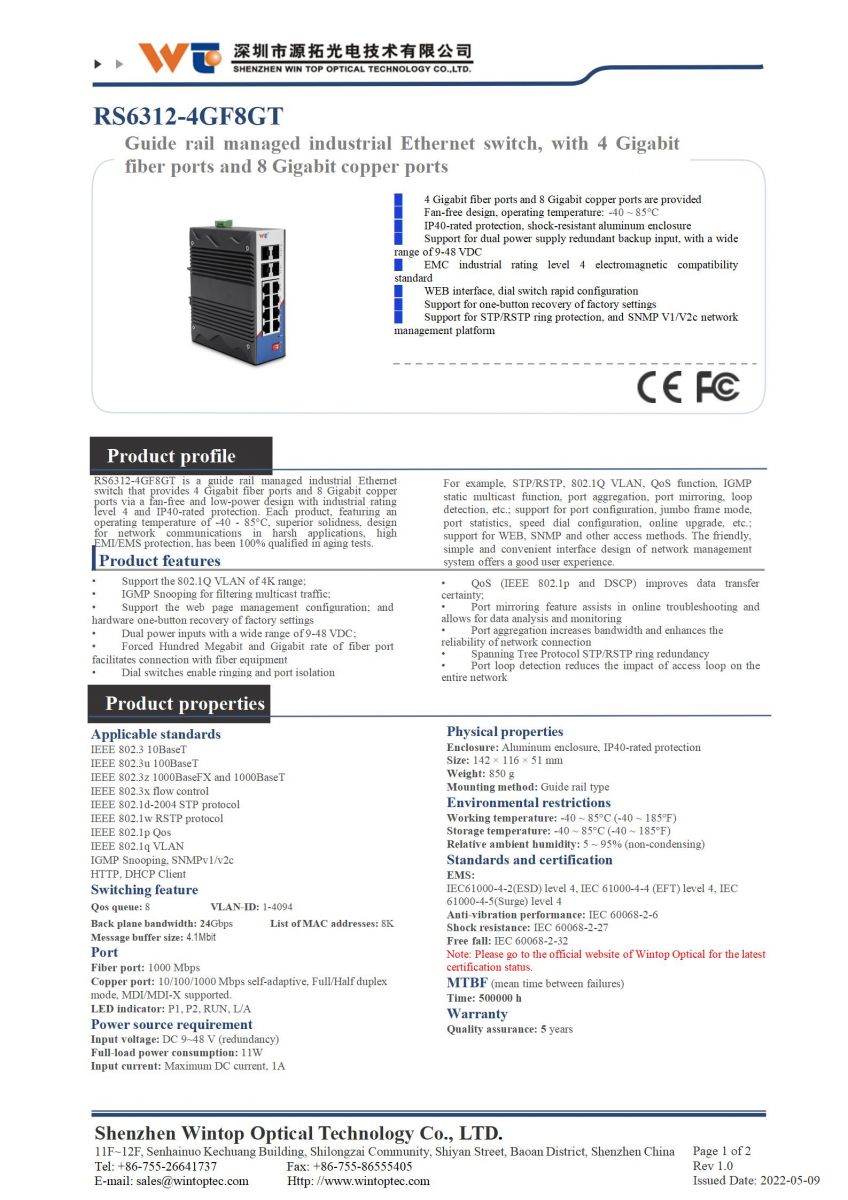

Related Documents Specification
