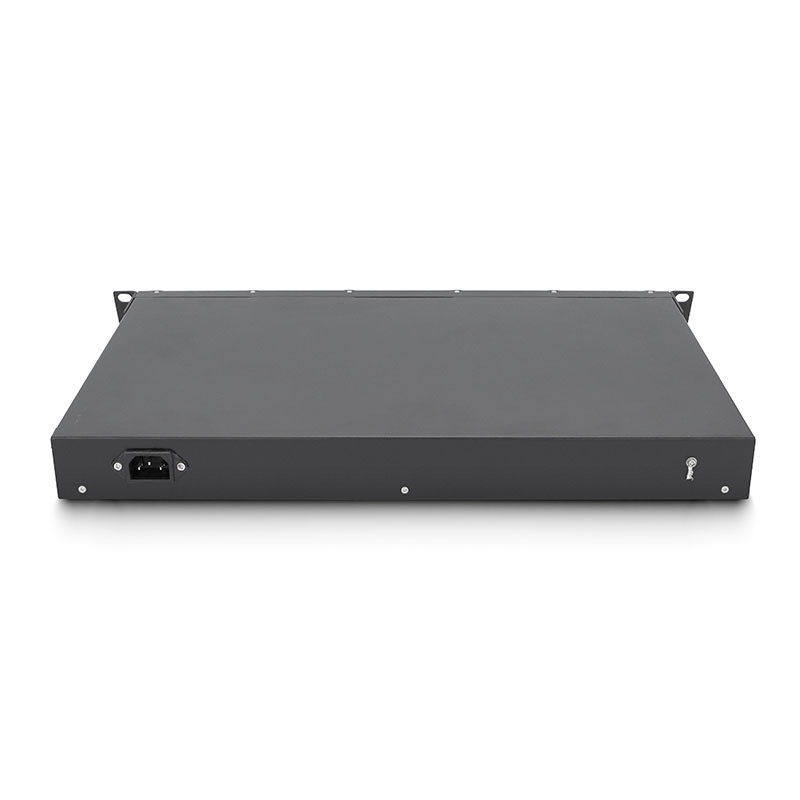

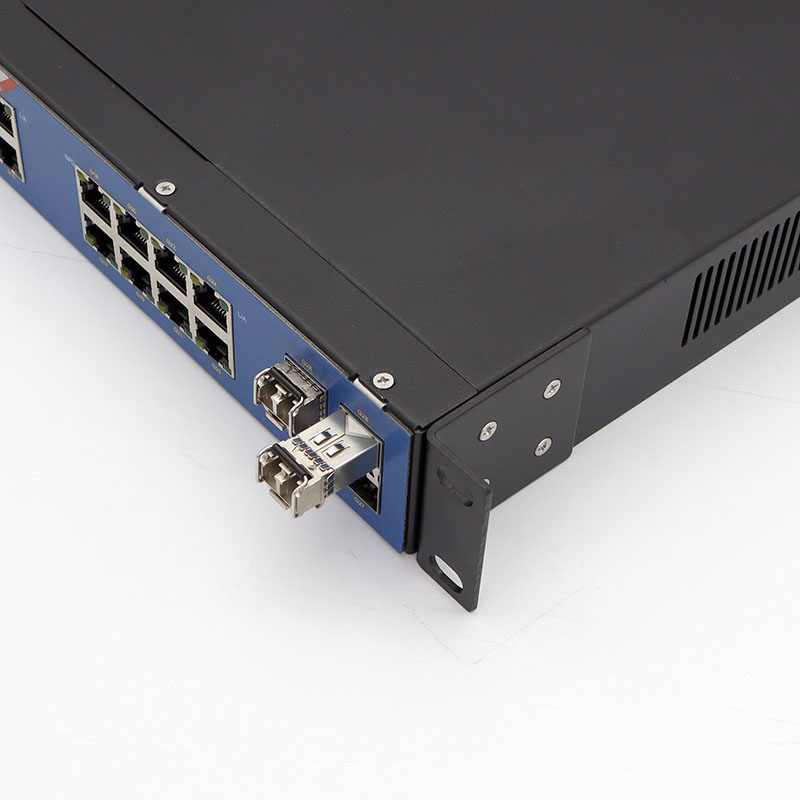

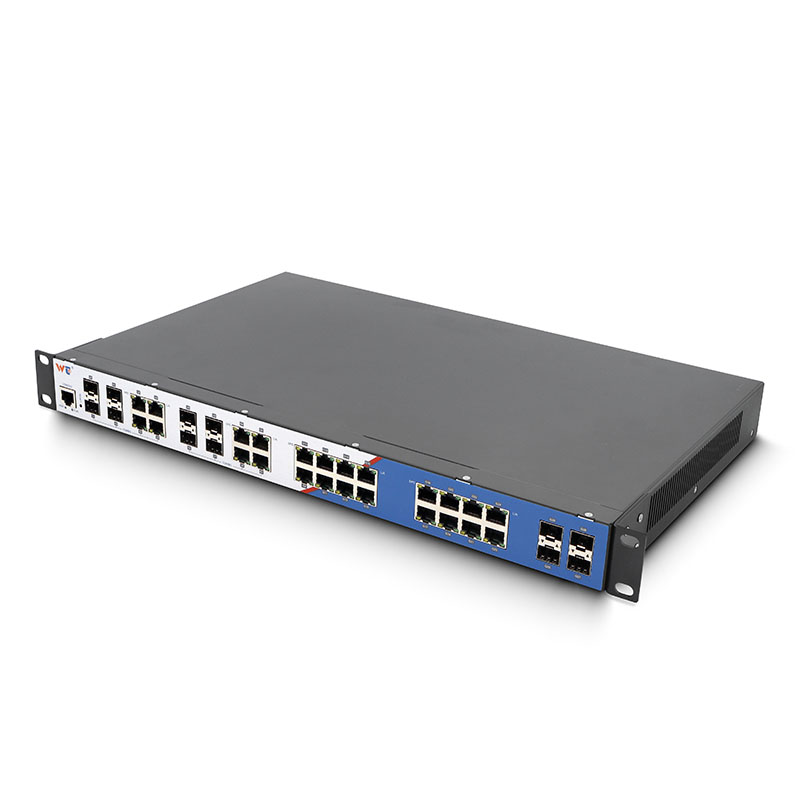

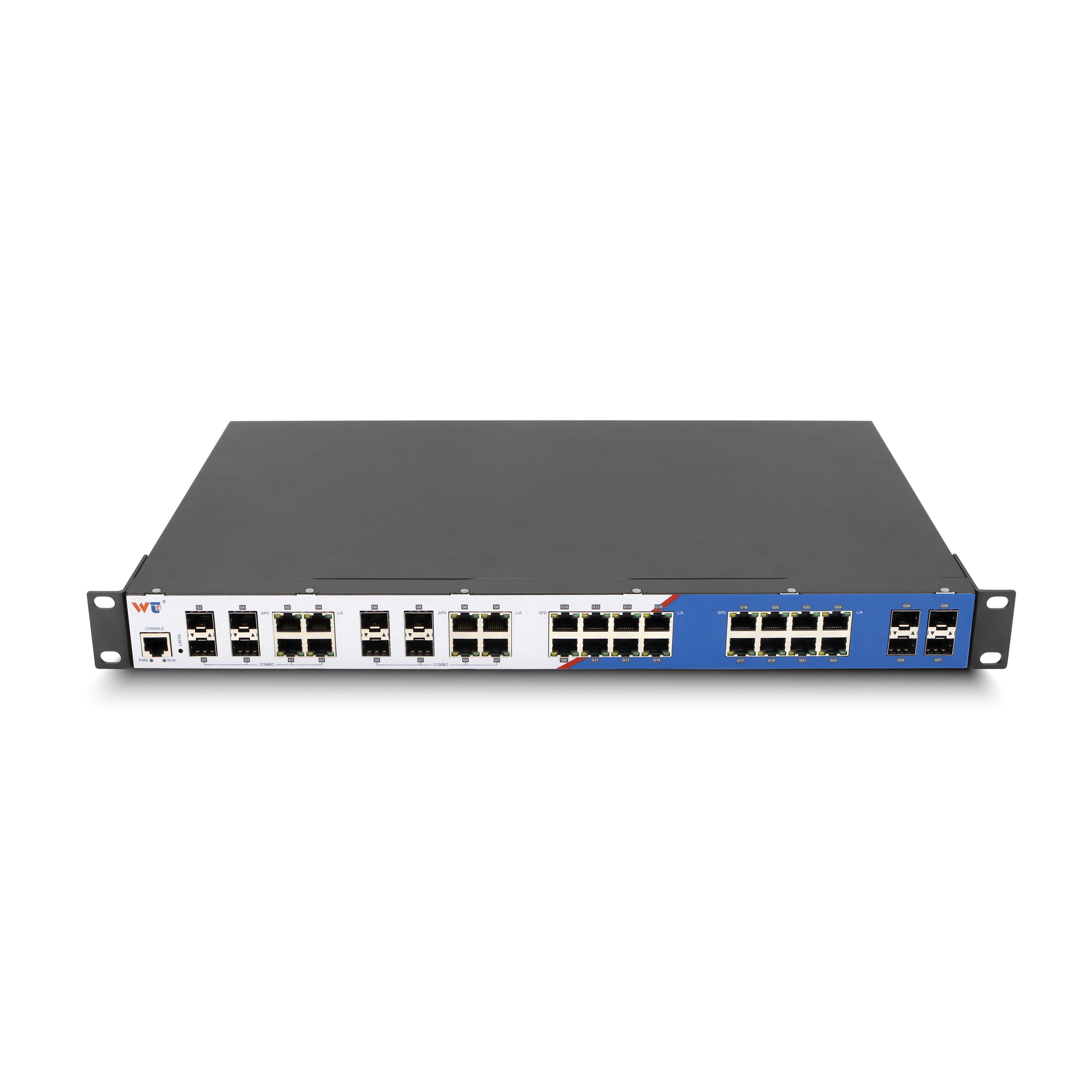

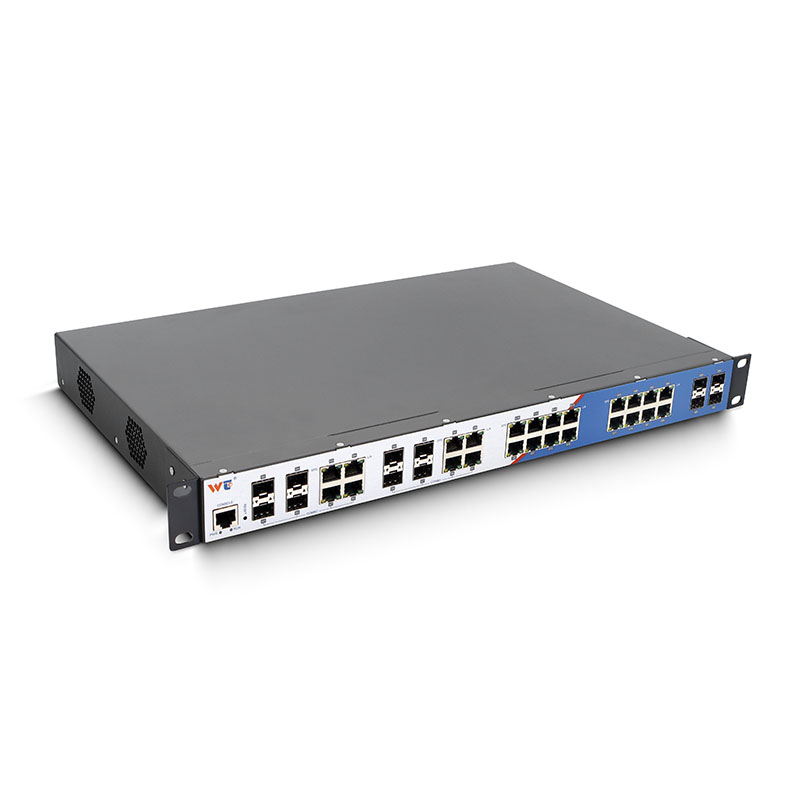

CM5728-4GF8GC16GT Layer 3 Managed Switch
model: CM5728-4GF8GC16GT
28-Port Layer 3 Managed Rack-Mounted Ethernet Switch, with 4 Gigabit Fiber Ports, 8 Gigabit SFP/RJ45 Combo Ports, and 16 Gigabit Copper Ports
CM5728-4GF8GC16GT is a layer 3 rack-mounted managed switch designed to meet communication system requirements. It has 4 Gigabit fiber ports, 8 Gigabit SFP/RJ45 Combo ports, and 16 Gigabit copper ports. It supports various management methods including Web, CLI, and Telnet, as well as SNMPv1/v2c/v3-based network management software. It also supports layer 3 functionalities, including static routing, RIP, dynamic routing OSPF, VRRP, smart stacking, IS-IS, BGP, PIM, as well as rich layer 2 functionalities such as RMON,
port mirroring, QoS, LLDP, DHCP, file management, log management, port statistics, ARP user privilege classification, ACL, NAT, port alarms, storm control, Telnet/SSH configuration, DHCP Snooping, 802.1Q VLAN, port aggregation, port loopback, bandwidth management, flow control, port isolation, static multicast, multicast routing, and IGMP-Snooping. The user-friendly management system interface ensures easy operation, providing you with a good user experience.
• Supports 4K 802.1Q VLAN, simplified network planning;
• Supports IGMP Snooping and GMRP for filtering multicast traffic;
• Supports dual IPv4/IPv6 protocol stack;
• Line-speed L2/L3 forwarding capability;
• QoS (IEEE 802.1p and DSCP) improves data transfer certainty;
• RMON provides more effective network monitoring and prediction capabilities;
• Port mirroring function to assist in online troubleshooting.
• Supports 255 vlan-based and mac-based ACL access controls;
• Supports one-click factory reset.
Applicable standards
IEEE 802.3i 10Base-T IEEE 802.3u 100Base-T
IEEE 802.3ab 1000Base-T IEEE 802.3z 1000Base-SX/LX
IEEE 802.3ad Link Aggregation IEEE 802.3x Flow Control
IEEE 802.1p Priority IEEE 802.1Q VLAN
IEEE 802.1D STP IEEE 802.1w RSTP
IEEE 802.1s MSTP IEEE 802.1p QoS
Protocols
IGMP Snooping, GMRP, GVRP, DHCP, SNMPv1/v2c/v3, TFTP, NTP, SNTP, Ping, Traceroute, RMON, HTTPS, SSH, Telnet, Syslog, ERPS, MLD, LLDP, LACP, ACL, VRRP, RIP, OSPF, BGP, IS-IS, PIM
MIB: MIB-II, BRIDGE MIB, Ethernet MIB, IF MIB, RMON MIB Group 1, 2, 3, 9
Switching features
QoS queue: 8 Packet forwarding rate: 126 Mpps
VLAN-ID: 1-4094 Back plane bandwidth: 336 Gbps
List of MAC addresses: 8K
Message buffer size: 32 Mbit
Port
Serial port: RS-232 (port type: RJ45 slot)
Gigabit fiber port: 1000 Mbps (port type: SFP slot)
Gigabit copper port: 10/100/1000 Mbps self-adaptive, Full/Half duplex mode, MDI/MDI-X supported.
LED indicator: PWR, Link/ACT, SPD, RUN
Power source requirement
Input voltage: AC220V
Physical properties
Enclosure: Metal IP30
Size: 440 mm*280 mm*44 mm
Weight: 4380 g
Mounting method: Rack-mounted
Environmental restrictions
Working temperature: -40 ~ 75°C (-40 ~ 167°F)
Storage temperature: -40 ~ 85°C (-40 ~ 185°F)
Relative ambient humidity: 5 ~ 95% (non-condensing)
Standards and certification
EMS:
IEC 61000-4-2 ESD level 3, IEC 61000-4-4 EFT level 4, IEC 61000-4-5 Surge level 4
Anti-vibration performance: IEC 60068-2-6
Shock resistance: IEC 60068-2-27
Free fall: IEC 60068-2-32
Certification: CE, FCC, and RoHS
MTBF (mean time between failures)
Time: 500,000 h
Warranty
Quality assurance: 3 years
